BS 3242 standard Bare AAAC Yew Conductor AAAC Cable for High Voltage Power Transmission

Price:	0.4 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AAAC Conductor

Production Capacity: 5000KM/Month

Delivery Date: 40 days

Type: Bare

Conductor Material: Aluminum

Brand Name: TANO Cable

Means of Transport: Ocean

Packing: Wooden drum

Application: Overhead

Insulation Material: Others

Conductor Type: Stranded

1. All Aluminum Alloy Conductor
2. BS 3242 standard

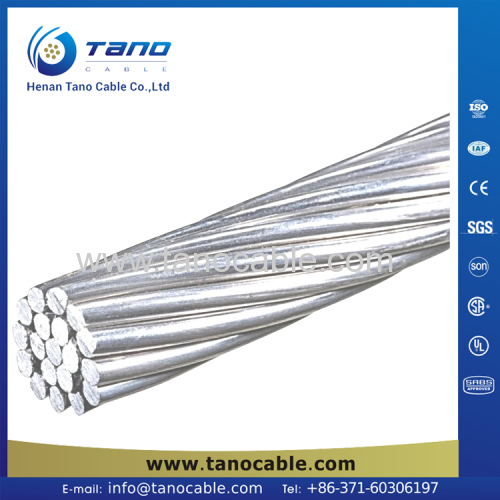

All Aluminum Alloy Conductor (AAAC) Cables

Application

AAAC is mainly used as bare overhead transmission cable and as primary and secondary
distribution cable. It is also suitable for laying across basins, rivers and valleys where
special geographical teatures exist.

standard

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201
-6 standards

Construction

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically
stranded.
This section deals with heat-treatable magnesium silicon type aluminium alloys to the
applicable International Standard, the electrical and mechanical properties of which all
fall within the values suggested by relevant standard. Conductors to all other recognized
specifications can also be supplied. The alloys referred to have higher strength but lower
conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used
to advantage in place of the more conventional ACSR; Having lower breaking loads than
the later, their use becomes particularly favourable when ice and wind loadings are low.

ELECTRICAL PROPERTIES

linear Expansivity 23 x10-6 (°C)

Service conditions
Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m2
Seismic Acceleration	0.12 - 0.05g
isokeraunic level	10 – 18
relative Humidity	5 – 100%

Construction Parameters

BS 3242

Code	AL Nominal Area	Cu Nominal Area Equivalent	Total area	stranding	Overall diameter	Weight
	mm2	mm2	mm2	No.xmm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	1323

(*)Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
